- Size: 1
- Place of Origin: China
- Brand Name: KAIHUA
- Model Number: Cummins diesel engine
- Weight: 1.000 kg
Product Details:
| Place of Origin: | China |
|---|---|
| Brand Name: | Kaihua |
| Certification: | CUMMINS OEM , STAMFORD OEM ,CE,ISO9001:2008 |
| Model Number: | KHC series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | plastic film in polywood case |
| Supply Ability: | 30 sets Per Week |

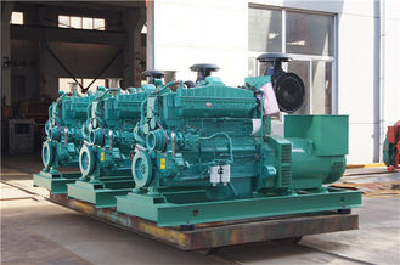

Technical parameters of 15KW Dongfeng Cummins generator sets
| MODEL | KH-15GF | |
| Prime Power (50Hz) | 15KW | 18.75KVA |
| Standby Power(50Hz) | 16.5KW | 20.62KVA |
General Features:
Engine(DCEC Cummins 4B3.9-G2 )
Radiator 50 degree max, fans are driven by belt, with
safety guard
24V charge alternator
Alternator: single bearing alternator IP23, insulation
class H/H
Absorber
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Two12V batteries, rack and cable
Ripple flex exhaust pipe, exhaust siphon, flange,
muffler
User manual
ENGINE DATA
Manufacturer / Model: DCEC Cummins 4B3.9-G2 , 4-cycle
Air Intake System: Air natural cooled
Fuel System: A model fuel pump
Cylinder Arrangement: 4 in line
Displacement: 3.9L
Bore and Stroke: 102*120(mm)
Compression Ratio: 16.5:1
Rated RPM: 1500rpm
Max. Standby Power :27KW/36.7HP
Governor Type:RSV Mechanical(Std) / Electronic (Optional)
GENERAL DATA
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
Number of Phase: 3
Connecting Type: 3 Phase and 4 Wires, “Y” type connecting
Number of Bearing: 1
Power Factor: 0.8
Protection Grade: IP23
Altitude: ≤1000m
Exciter Type: Brushless, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF):＜50
THF: ＜2%
Voltage Regulation, Steady State: ≤±1%
Alternator Capacity: 18.75KVA
Alternator Efficiencies: 85%
Air Cooling Flow: 0.09m3 /s
Standard Features
Standard Auto Control System
MCCB
Special tool for Cummins engine
Base Fuel Tank
Oil Drain Valve
One set of fuel filter / oil filter / belt
Starting batteries( Maintenance-Free & Watering-Free) with connective wires
Exhaust System( including until muffler)
Documents
Options
Daily Fuel Tank
Permanent Magnet Generator(PMG)
Remote Control Panel
Battery Charger
Rainproof Type
Automatic Transfer Switch
Engine Heater
Soundproof Type
Switch box
Alternator Heater
Trailer Type
Spare Parts
Water Separator
